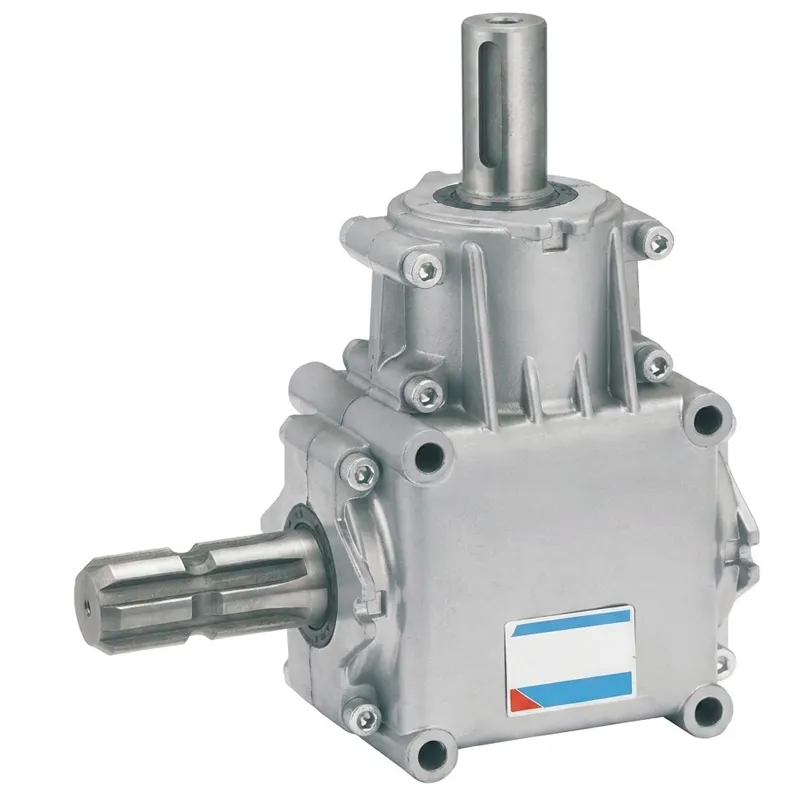

EP 15HP 540rpm Aluminum Gearbox
The EP-HC-RV022(X) is a 15HP aluminum right angle gearbox designed for 540rpm PTO-driven implement systems and direct-coupled motor drives across agricultural and light industrial applications. It is offered in three ratio configurations — 1:1, 1:1.46, and 1:2.91 — with corresponding tooth pair sets of 19/19, 19/13, and 32/11, and module values of 4.5, 5.0, and 3.0 respectively. This ratio coverage spans direct-drive 540rpm output through moderate step-down to an output of approximately 185rpm in the 1:2.91 variant, giving implement engineers and operators a meaningful speed range from a single housing series without the need for separate reduction stages or larger gearbox classes.
At 7 kg net weight and a compact overall profile measuring 240.5mm across the widest face, the HC-RV022(X) balances genuine structural rigidity — important at 15HP input on a 540rpm drive — with the weight savings that characterise a well-engineered aluminum gearbox housing.
Aluminum Gearbox Series
EP 15HP 540rpm Aluminum Gearbox
A robust 15HP right-angle aluminum gearbox rated at 540rpm PTO input — available in three gear ratio configurations, housed in a precision die-cast aluminum body, and engineered for reliable continuous-duty power transmission across agricultural and light industrial implement drives worldwide.
Technical Specifications of the Aluminum Gearbox
All parameters below are applicable to the EP-HC-RV022(X) aluminum gearbox series. Housing dimensions and mounting geometry are constant across all three ratio variants; only the bevel gear set (tooth counts and module) changes with each ratio selection. At 540rpm rated input and 15HP across all configurations, this unit offers genuine ratio flexibility without compromising the power ceiling or requiring a change in housing size.
| Aluminum Gearbox Parameter | Value |
|---|---|
| Model Reference | EP-RV022 (X) Aluminum Gearbox |
| Available Ratios | 1:1 / 1:1.46 / 1:2.91 |
| Teeth (per ratio) | 19/19 (1:1) / 19/13 (1:1.46) / 32/11 (1:2.91) |
| Module (per ratio) | 4.5 / 5.0 / 3.0 |
| Rated Power | 15 HP (all ratio variants) |
| Rated Input Speed | 540 rpm |
| Input Shaft Interface | 1 3/8 Z6 (6-spline, standard PTO) |
| Output Shaft Type | Optic axis (keyed round shaft) |
| Net Weight | 7 kg |

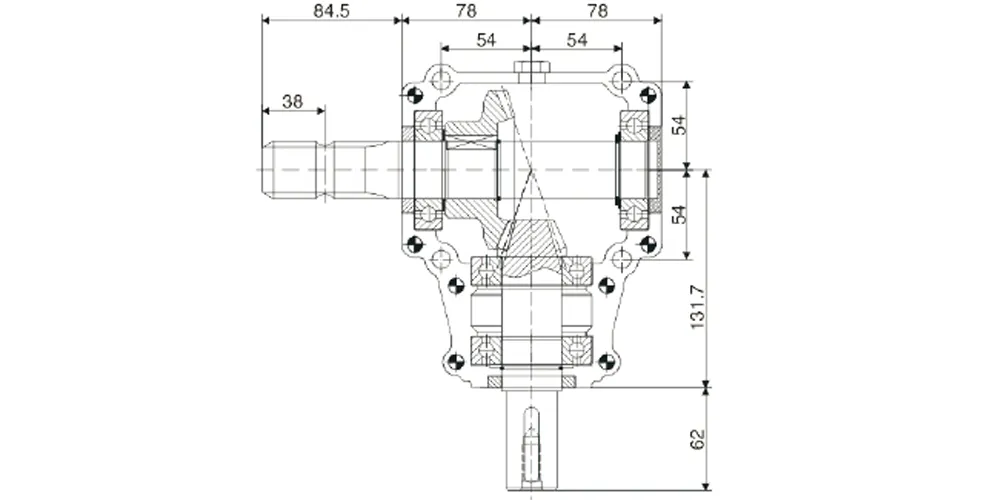

| Overall Dimensions (L x W x H) | 240.5 mm x 131.7 mm x 193.7 mm |
| Input Shaft Diameter | 38 mm (1 3/8" Z6 spline) |
| Housing Material | Die-cast aluminum alloy |
| Gear Type | Spiral bevel, 90-degree right angle drive |
| Lubrication | Splash lubrication, EP 90 gear oil |
| Sealing | Double-lip NBR oil seals, all shaft exits |
Ratio Variant Comparison at 540rpm Input
| Ratio | Teeth Pair | Module | Power (HP) | Approx. Output (rpm) |
|---|---|---|---|---|
| 1:1 | 19 / 19 | 4.5 | 15 | 540 |
| 1:1.46 | 19 / 13 | 5.0 | 15 | 370 |
| 1:2.91 | 32 / 11 | 3.0 | 15 | 185 |
Working Principle of the Aluminum Gearbox
Input torque enters the aluminum gearbox through the 1 3/8" 6-spline (Z6) input shaft — the global standard interface for 540rpm agricultural PTO systems used across Category I and II three-point linkage tractors in Europe, North America, Australia, South Korea, Brazil, and all other major agricultural markets. The 38mm input shaft bore accepts the PTO coupling yoke directly without adaptor hardware in virtually all standard implement configurations. Internally, the input shaft drives a spiral bevel pinion gear that meshes at 90 degrees with a bevel ring gear on the output shaft. This 90-degree redirection is the defining characteristic of the right-angle gearbox configuration — converting the horizontally oriented PTO torque into a vertical or lateral output to drive tine rotors, pump shafts, fan assemblies, or conveyor drives depending on the implement.
Each of the three ratio variants achieves its speed relationship through a different tooth count combination: the 1:1 configuration uses matched 19/19 teeth at module 4.5 for direct-speed transfer; the 1:1.46 uses 19 input teeth against 13 output teeth at module 5.0, producing a moderate speed reduction to approximately 370rpm; the 1:2.91 uses 32 input teeth against 11 output teeth at module 3.0, stepping down to approximately 185rpm at the output shaft. All three configurations carry the full 15HP power rating — a deliberate design choice that gives this aluminum gearbox platform unusual flexibility across implement lines that require different speed outputs from the same 540rpm PTO input without compromising on torque capacity. The spiral bevel tooth geometry provides a contact ratio above 1.0, distributing tooth load across multiple flanks simultaneously and reducing peak stress at any individual tooth root — the mechanism that allows quieter, long-lasting operation compared with straight-cut alternatives inside a standard aluminum gearbox.
Five Key Product Advantages of the Aluminum Gearbox
01 — 15HP Across All Three Ratios
Most multi-ratio gearboxes de-rate power at higher reduction ratios due to tooth stress limitations. This aluminum gearbox delivers the full 15HP rating at all three ratio options — 1:1, 1:1.46, and 1:2.91 — giving implement engineers genuine freedom to select the ratio that matches their speed requirement without accepting a power penalty. This is a practical advantage for OEM product lines where one gearbox platform covers multiple implement configurations.
02 — Standard 540rpm PTO Interface
The 1 3/8 Z6 input spline is the global standard for 540rpm PTO drives — used consistently across European, North American, Australian, South Korean, and South American tractor platforms. This makes the HC-RV022(X) aluminum gearbox an immediate-fit solution for both new implement installations and replacement applications on existing equipment, without requiring custom yoke machining or adaptor shaft arrangements that add cost and potential misalignment.
03 — 7kg Aluminum Housing
At 7 kg, this unit weighs substantially less than a cast iron equivalent at the same 15HP rating. For implement designers managing rear-linkage weight budgets, this weight saving goes directly into additional tool capacity or implement width without exceeding the tractor's rear-axle load limit. The aluminum gearbox housing also dissipates heat faster than iron, extending oil service life in continuous-duty applications.
04 — Three Module Options in One Platform
The three ratio variants use different gear modules (4.5, 5.0, and 3.0) — each optimized for the tooth load profile of its respective speed and torque relationship at 15HP. Rather than using one module across all ratios, the HC-RV022(X) aluminum gearbox uses application-appropriate module values for each ratio, producing a more balanced safety factor across the product range and better long-term tooth durability at each operating point.
05 — Consistent Housing for Streamlined Stocking
Whether an agricultural machinery distributor in Canada or a maintenance workshop in Colombia is sourcing this aluminum gearbox unit, the physical housing is identical across all ratio variants — only the internal gear cartridge differs. This allows distributors to stock one housing and swap internal gear sets as needed, reducing the total SKU count required to cover multiple equipment lines and significantly simplifying field repair logistics.
Materials and Construction of the Aluminum Gearbox
Die-Cast Housing
The aluminum gearbox housing is pressure die-cast aluminum alloy, CNC-finish-machined on all bearing bores, shaft entry faces, and housing joint surfaces. The alloy achieves a strength-to-weight ratio appropriate for 15HP bevel gear loads while keeping the 7kg net weight that distinguishes this unit from iron-housed alternatives. Aluminum's passive oxide layer provides baseline corrosion protection on machined surfaces.
Spiral Bevel Gear Set
Alloy steel, carburised and case-hardened with tooth profiles precision-ground after heat treatment. Each ratio variant uses an application-matched module to ensure that tooth root bending stress and flank contact stress are managed to similar safety factors across all three configurations of this aluminum gearbox, rather than applying one module that fits some ratios well and others poorly.
Input and Output Shafts
Alloy steel, precision-turned and ground. The 38mm input shaft carries the 1 3/8" Z6 6-spline profile machined to ISO/DIN standard geometry for consistent yoke engagement. The optic-axis output shaft is dimensioned for direct coupling hub fitment for this aluminum gearbox without play or fretting at the shaft-to-hub contact zone under working torque.
Bearings
Rolling element bearings sized for combined radial and thrust loads at 15HP across the full 540rpm input condition. Pre-loaded during assembly to eliminate shaft end-play — a critical parameter for spiral bevel gear performance inside the aluminum gearbox, since axial clearance directly shifts the contact pattern off the optimum tooth face zone and accelerates non-uniform flank wear.
Sealing and Surface Finish
NBR double-lip seals at all shaft exits, rated for the rotational speed and temperature range of normal operating conditions. The exterior surfaces are treated with an agricultural-grade enamel topcoat providing resistance to UV exposure, fertiliser residue, fuel splash, and field moisture — conditions that every outdoor aluminum gearbox encounters routinely across every market region.
Application Scenarios
The 540rpm input rating, three-ratio configuration, and consistent 15HP power capacity make this aluminum right angle gearbox deployable across a broader range of implement and process drive applications than most single-ratio units at this power class. The scenarios below reflect real-world deployments across the agricultural and light industrial sectors served by this product.
Rotary Cultivator and Tine Implement Drives
The 1:2.91 ratio variant, delivering approximately 185rpm output from a 540rpm PTO, suits the tine shaft speed requirement for compact to mid-size rotary cultivators used in vegetable growing, orchard floor management, and inter-row tillage. At 15HP, the torque headroom is sufficient for light to medium soil conditions without the power reserve concerns that affect a lower-rated compact aluminum gearbox on the same implements.
Fan and Air-Distribution Drives on Seeding Equipment
The 1:1 direct-drive variant keeps output at 540rpm — matching the operating speed of most centrifugal fan assemblies used in air-seeder distribution systems and pneumatic fertiliser spreaders. The efficient heat dissipation of the aluminum gearbox is particularly relevant in this application, where fans often run continuously across long daily operating windows during seeding and top-dressing seasons.
Irrigation and Water Pump Drives
The 1:1.46 ratio (approximately 370rpm output) fits the design speed of many mid-volume centrifugal pumps used on field irrigation trailer units and orchard sprayer pump assemblies. The 15HP rating adequately covers the power draw of pumps in this flow-rate class without margin-constrained operation that stresses the aluminum gearbox thermally in warm ambient conditions.
Light Industrial Corner Drives and Conveyor Redirection
In light manufacturing and food processing settings — packing lines, grading conveyors, and mixing units — this aluminum gearbox serves as a compact right-angle redirection point where a motor drive needs to turn a corner in constrained floor layouts. The low weight allows cantilever mounting directly on motor frames without additional structural support, simplifying machine design.
OEM Platform Drive for Multi-Implement Equipment Lines
Agricultural machinery manufacturers building parallel product lines — a narrow tiller, a standard tiller, and a wider cultivator — often specify this aluminum gearbox series as a shared platform component. The identical housing across all three ratio variants means one tooling investment, one set of jigs, and one part number for the housing in the production BOM.
Regional Compliance and Applicable Standards
Every agricultural and industrial aluminum gearbox at this power rating is used in equipment subject to a range of mandatory safety and quality standards across different regional markets. The following frameworks apply to the primary markets where the EP-HC-RV022(X) is deployed.
European Union — Machinery Regulation 2023/1230/EU
PTO-driven gearboxes supplied as components for CE-marked agricultural machinery must be accompanied by an incorporation declaration. EN ISO 4254-1 covers agricultural machinery safety and applies to assemblies incorporating this aluminum gearbox as a driveline component, alongside other safety-critical power transmission components.
United Kingdom — UKCA Marking and PUWER 1998
Machinery placed on the Great Britain market must carry UKCA conformity marking. UK supply of the aluminum gearbox as partly completed machinery requires a declaration of incorporation. PUWER 1998 continues to govern the use of power transmission equipment in commercial and agricultural workplaces across England, Scotland, and Wales.
United States — ASABE S203 and OSHA 1910.219
For agricultural PTO applications in the US, ASABE S203 defines the interface standard for 540rpm PTO connections, which this aluminum gearbox meets through its 1 3/8 Z6 input shaft. OSHA 29 CFR 1910.219 governs mechanical power transmission components used in general industry manufacturing or processing environments.
Australia — AS 4024 and Safe Work Australia WHS
AS 4024 provides the Australian framework for machinery guarding and safety. Safe Work Australia's Model Work Health and Safety Regulations require risk assessment and guarding of rotating driveline components. The aluminum gearbox components should be sourced from ISO 9001:2015 certified suppliers to meet standard procurement requirements.
South Korea — KS B Standards and MAF
KS B standards define interface and quality requirements for power transmission components in agricultural machinery for the Korean market. ISO 9001:2015 certification of the aluminum gearbox manufacturers supports KS-aligned import procedures and MAF certification required for agricultural machinery distributed in South Korea.
Brazil and Colombia — ABNT, MAPA and ICONTEC
Brazil's ABNT NBR standards and MAPA import certification requirements govern agricultural machinery components. ISO 9001:2015 certification and dimensional conformity documentation for shaft interfaces are standard requirements to support customs clearance processes for the aluminum gearbox in the Brazilian market.
Compatible Products and System Supply
The EP-HC-RV022(X) aluminum gearbox is dimensioned to pair with standard 540rpm agricultural PTO shafts and integrates into broader implement drivetrain systems where one-stop component sourcing reduces procurement risk. The two product categories below complete the driveline on either side of this unit.
PTO Shaft
The 1 3/8 Z6 input interface on this gearbox directly mates with 540rpm PTO shafts carrying a matching 6-spline yoke. Our PTO shafts are available across the rated torque range suitable for the 15HP input of this aluminum gearbox, with full-length guarding compliant with EU Machinery Regulation, UK PUWER, and Australian AS guarding standards. Sourcing the PTO shaft alongside the gearbox eliminates the dimensional mismatch risk that occurs when combining components from different suppliers with divergent spline tolerance conventions, preventing accelerated yoke wear at the aluminum gearbox input end.
Full Agricultural Gearbox Range
Applications that exceed 15HP, require cast iron durability for heavy stone-strike conditions, or need higher step-down ratios than the 1:2.91 maximum of this series are well served by the broader agricultural gearbox portfolio available alongside this aluminum gearbox model. The extended range covers rotary cultivator gearboxes from 30HP to over 100HP in cast iron, worm gear reducers for high-ratio step-down in a compact footprint, and planetary gear drives for high-torque industrial applications. All models share the same 1 3/8 Z6 PTO input standard, making transitions between aluminum gearbox classes straightforward.
About Our Manufacturing Facility
Our facility has been producing precision mechanical power transmission components for over ten years, supplying agricultural machinery builders, OEM equipment integrators, and aftermarket distributors across Europe, North America, Asia, and South America. The product portfolio spans agricultural aluminum gearbox units, worm gear reducers, planetary gear drives, power take-off shafts, hydraulic cylinders, roller chains, sprockets, pulleys, worm wheels, and electric motors — covering both standard catalogue configurations and fully engineered custom designs.
The facility operates under an ISO 9001:2015 certified quality management system, with process controls traceable across all production stages from incoming material inspection through machining, heat treatment, assembly, dimensional verification, and dispatch. Housing materials across the range include ductile iron, grey cast iron, cast steel, precision investment cast steel, and cast aluminum alloys. In-house machining covers CNC turning, milling, gear hobbing, profile grinding, and precision boring — giving us the production depth to hold the tolerances that reliable aluminum gearbox performance depends on.
Workshop
Frequently Asked Questions
Q1. What aluminum gearbox ratio should a UK horticulture machinery dealer recommend for driving a compact rotary tiller on a 540rpm PTO tractor?
Q2. How does an aluminum gearbox housing perform thermally on a 540rpm fan drive running continuously across the Australian summer?
Q3. Which aluminum gearbox replacement fits a 540rpm PTO-driven grass mower where the original cast iron unit has become too heavy?
Q4. Where can a South Korean OEM implement manufacturer source aluminum gearbox manufacturers with KS-aligned documentation for a new 15HP product line?
Q5. When does an aluminum gearbox need replacement versus internal repair after a seal failure has allowed water ingress?
