Industrial Transmission Manufacturer

Gear-Based Reduction

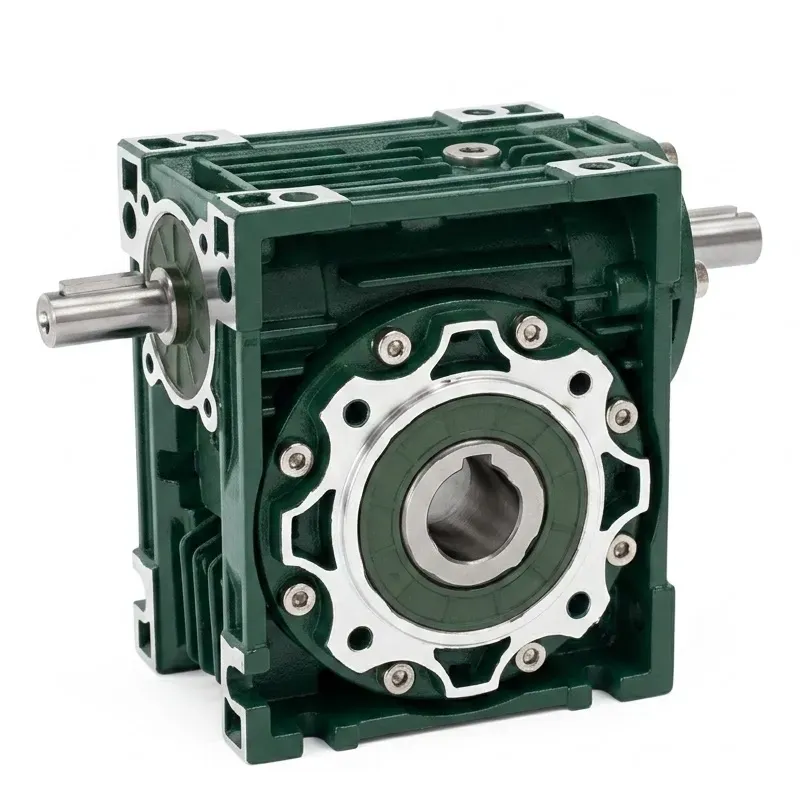

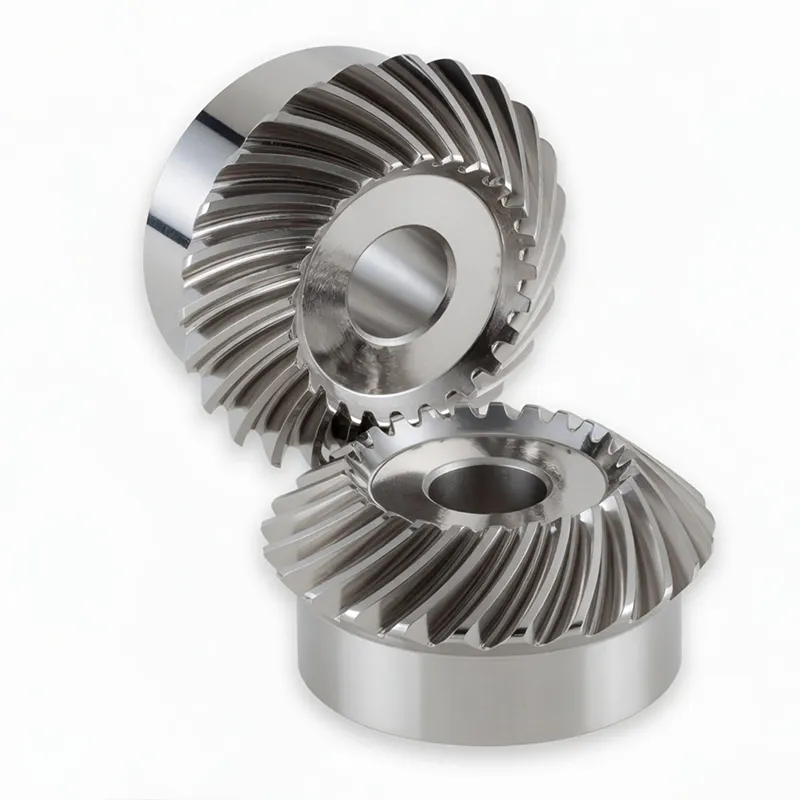

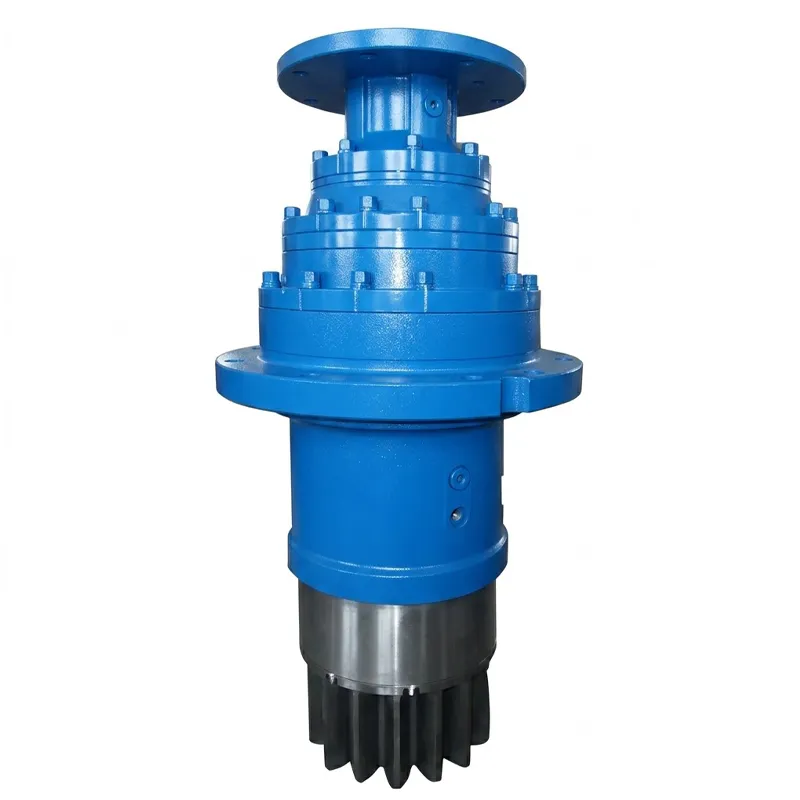

Spur, helical, and bevel gears transfer torque through direct tooth-to-tooth contact. Helical gears — standard in our worm and planetary gearboxes — achieve noise levels below 72 dB by distributing load across multiple teeth simultaneously, compared to 80+ dB in straight-cut spur configurations. Material: forged 20CrMnTi alloy steel, carburised and ground to DIN quality grade 6.

Chain Drive Mechanics

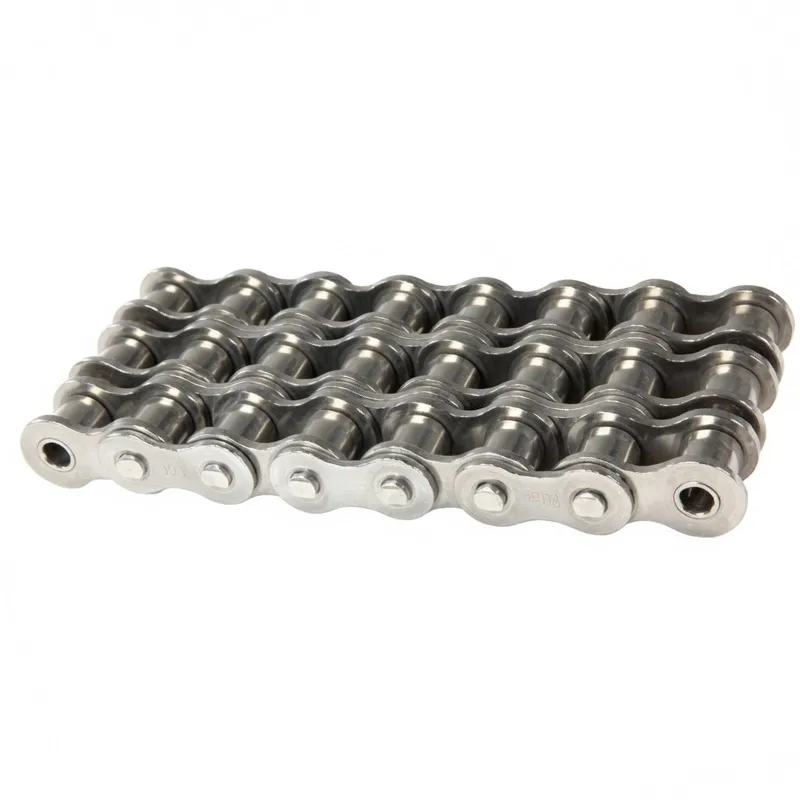

Roller chains engage sprocket teeth through a series of hardened steel rollers seated in precision-hobbed tooth pockets. The polygonal effect — velocity variation per revolution — is minimised by specifying higher tooth counts on the driving sprocket. Our ISO 606 / ANSI B29.1 chains are manufactured from 40–50 HRC hardened link plates with pre-stretched pins to reduce initial elongation by up to 30% versus standard product.

Hydraulic Force Transmission

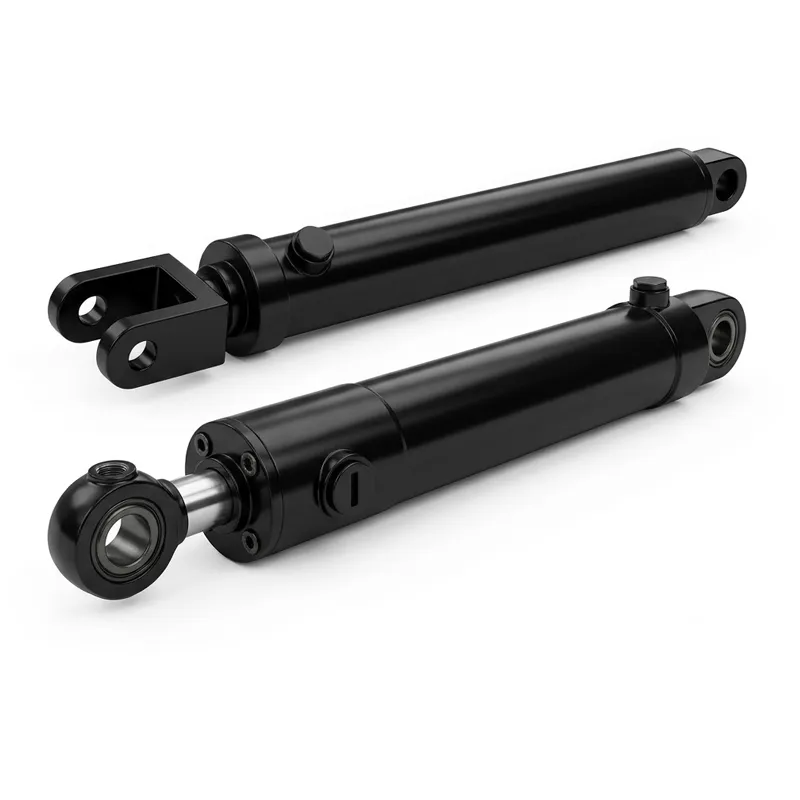

Hydraulic cylinders convert fluid pressure into linear mechanical force via F = P × A (Force = Pressure × Bore Area). Our welded-body cylinders use 27SiMn seamless steel tubes, honed to Ra 0.2–0.4 μm for optimal seal life. The chrome-plated piston rod (hard chrome thickness 25–35 μm, Vickers hardness HV800+) resists wear and corrosion in outdoor construction and agricultural field conditions.

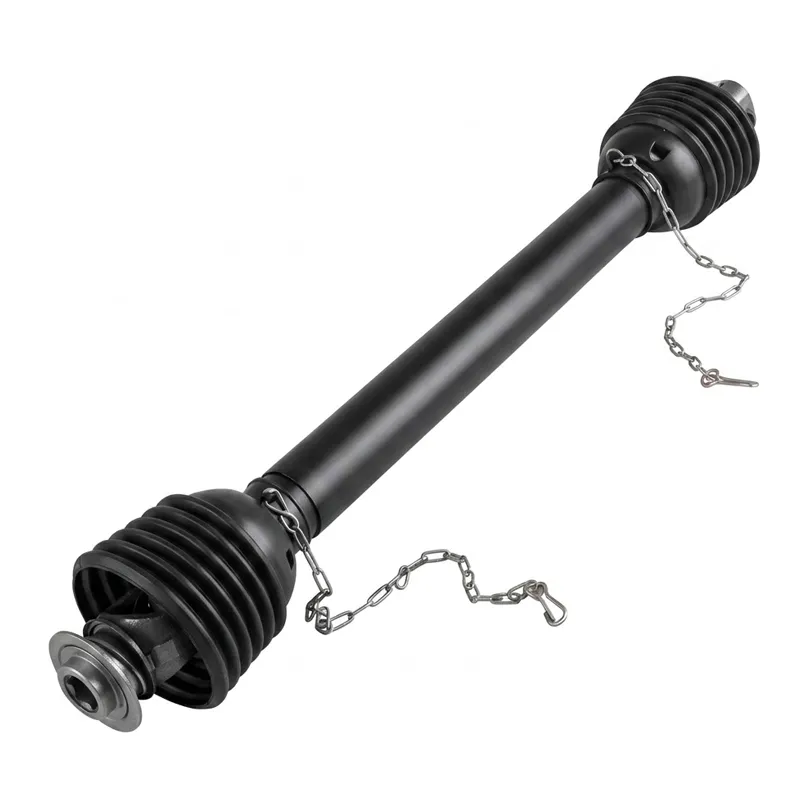

PTO Driveline Kinematics

Power Take-Off shafts transmit rotational power from a tractor's gearbox output to an implement at a standard 540 or 1000 RPM. Universal joints at each end accommodate angular misalignment up to 25°. Telescopic profiles (triangular, lemon, star, or splined tube) permit length variation during implement articulation. Our overrunning clutch models prevent harmful reverse-spin energy from rebounding into the tractor drivetrain during sudden deceleration.

Define Your Torque & Speed

Identify input power (kW), input speed (RPM), and required output speed. These three values determine gear ratio and minimum torque rating before any product can be selected.

Identify Load Character

Steady loads require a service factor of 1.0–1.25. Shock loads (conveyors, crushers, mixers) require 1.5–2.5. Wrong service factor selection is the leading cause of premature gearbox failure in the field.

Environment & Mounting

Outdoor, wet, or food-grade environments require stainless hardware and sealed housings (IP65 minimum). Confirm output shaft orientation and mounting flange dimensions against available space in the machine frame.
